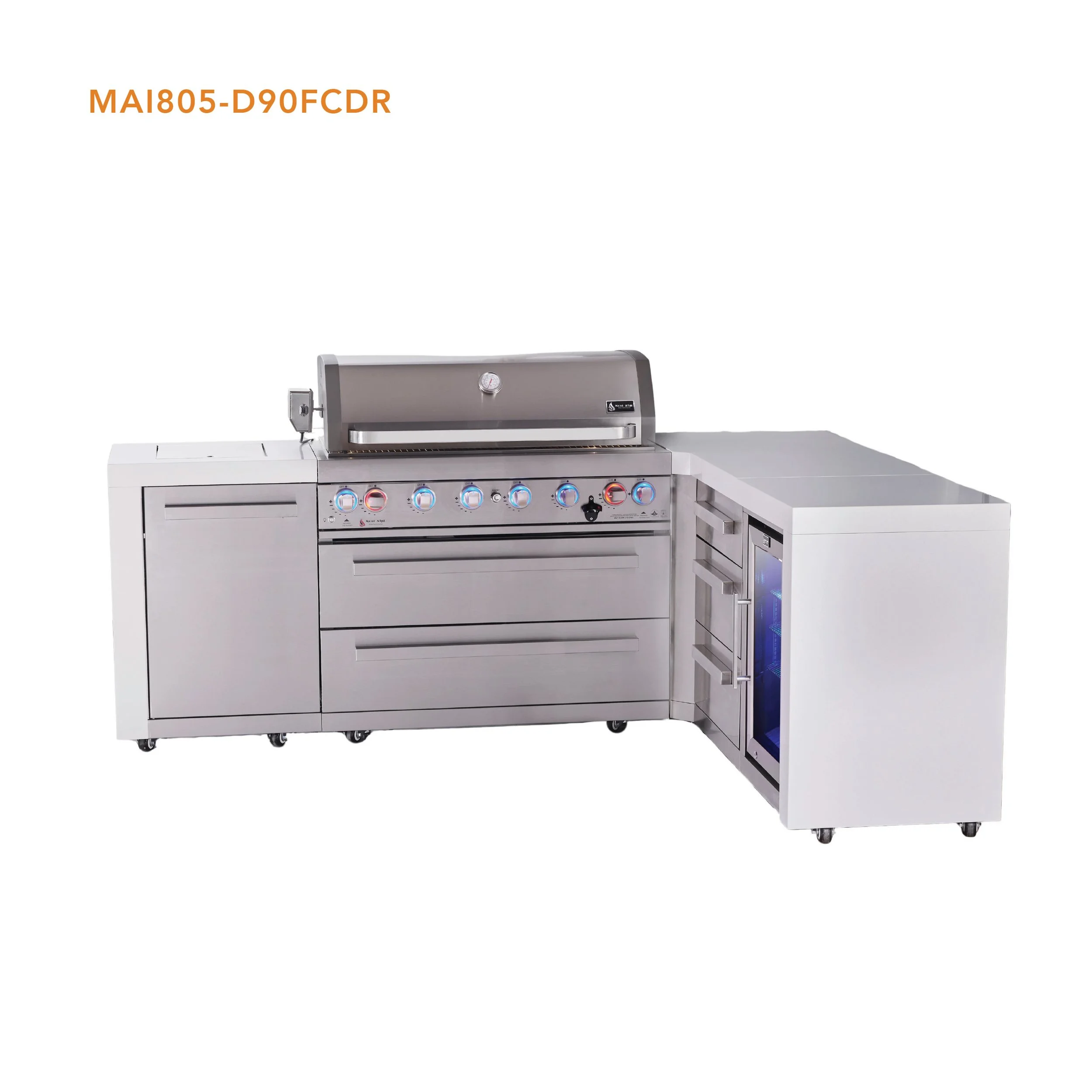

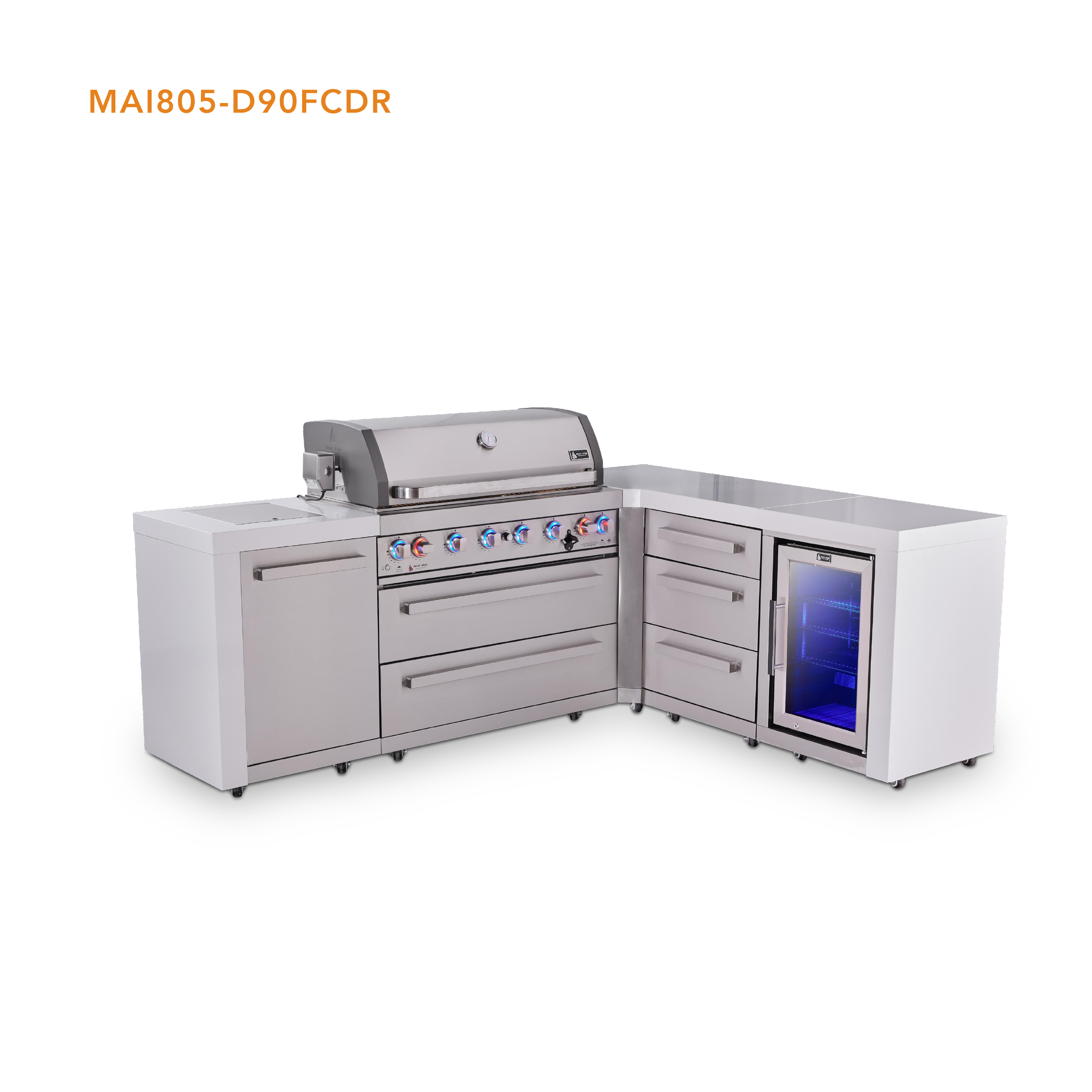

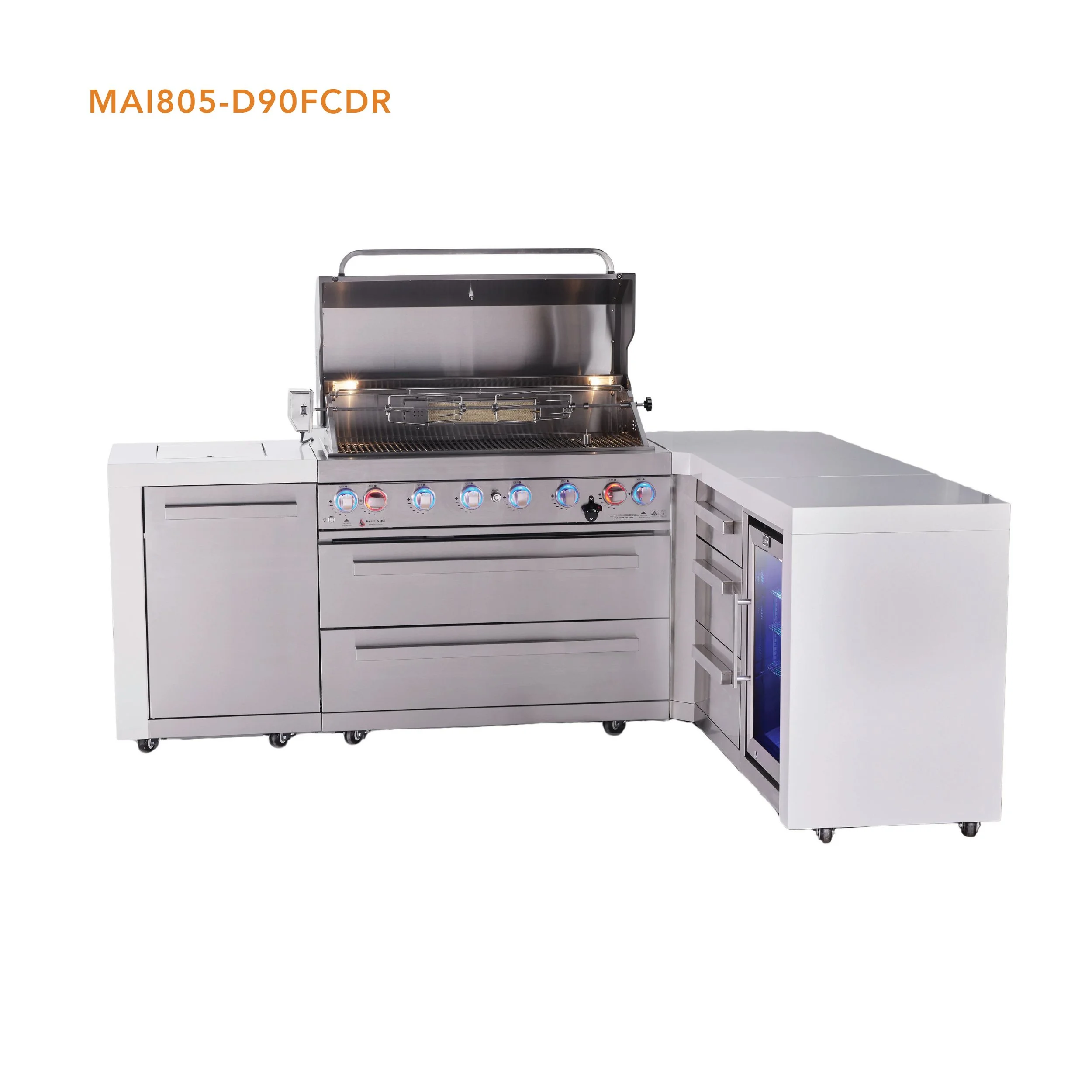

MAi805-D90FCDR

MONT ALPI 6-BURNER L-SHAPED DELUXE SERIES OUTDOOR KITCHEN ISLAND WITH CORNER FRIDGE AND EXTRA DRAWER SLIDES CABINET

The Mont Alpi 6-Burner L-Shaped Deluxe Series Outdoor Kitchen Island with Corner Fridge and Extra Drawer Slides Cabinet (MAi805-D90FCDR) is a spacious, performance-driven outdoor kitchen designed for larger patios and serious entertaining. Built around the 805 Deluxe grill in an L-shaped layout, this configuration prioritizes cooking capacity, cold storage, and efficient prep space in a clean footprint.

At the core is the 6-burner Deluxe Series grill, supported by an infrared side burner for high-heat searing or pan cooking and an infrared rear burner for rotisserie use. Integrated cooking lights and illuminated control knobs enable precise control during longer cook sessions—whether grilling for a crowd or managing multiple dishes at once.

This layout is defined by its practical modules. The corner fridge keeps ingredients and beverages within easy reach, while the extra drawer slides cabinet provides generous storage for tools and accessories. Waterfall granite surfaces wrap the island for durability and easy cleanup. The grill ships propane-ready and converts to natural gas with an optional kit.

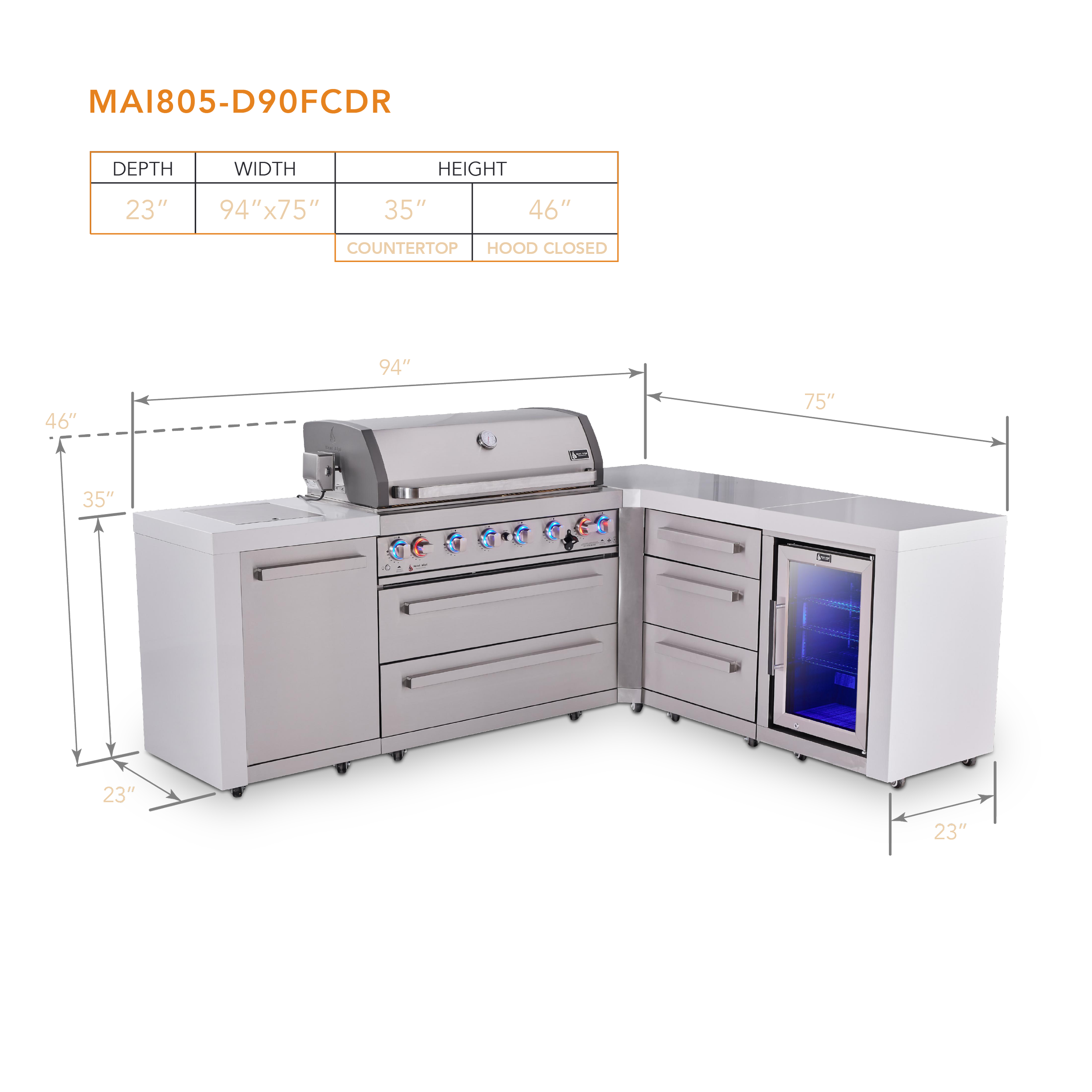

Overall Dimensions

• 94”x75”x35” (46” to top of closed hood)

Module Dimensions

• Left side side-burner end cabinet module - 25"x23"x35"

• 6-burner grill module - 43"x23"x46"

• MA90C - Corner Unit - 25”x25”x35”

• MA-DRW-SS - XL Drawer Cabinet Module - 25”x23”x35”

• MASFM - Deluxe Series Fridge Module - 25"x23"x35”

6-Burner Deluxe - standard features

• 115,000 BTU heat output

• Cooking surface 38”x18” exc. warming rack

• All 304 Stainless Steel components:

  • Six 304 Stainless Steel burners

  • 8mm 304 Stainless Steel cooking grills

  • Warming rack 304 Stainless Steel

• Ceramic infrared rear and side burners

• Rotisserie Kit with electric motor

• Easy-access full-front grease tray

• White composite granite surfaces and sides

• Two cooking surface halogen lights

• Bottle opener

• Weather cover

• Electronic ignition

• Temperature gauge

• Granite chopping board

• Large roller ball drawers

• On/Off red/blue changing color control knob lights

• Gliding rubber castor wheels and leveling feet

• Propane-ready, easily convertible to Natural Gas

  • Propane hose and regulator

  • Propane tank pull out

EACH MODULE DELIVERED FULLY ASSEMBLED
