MAi805-D90DR

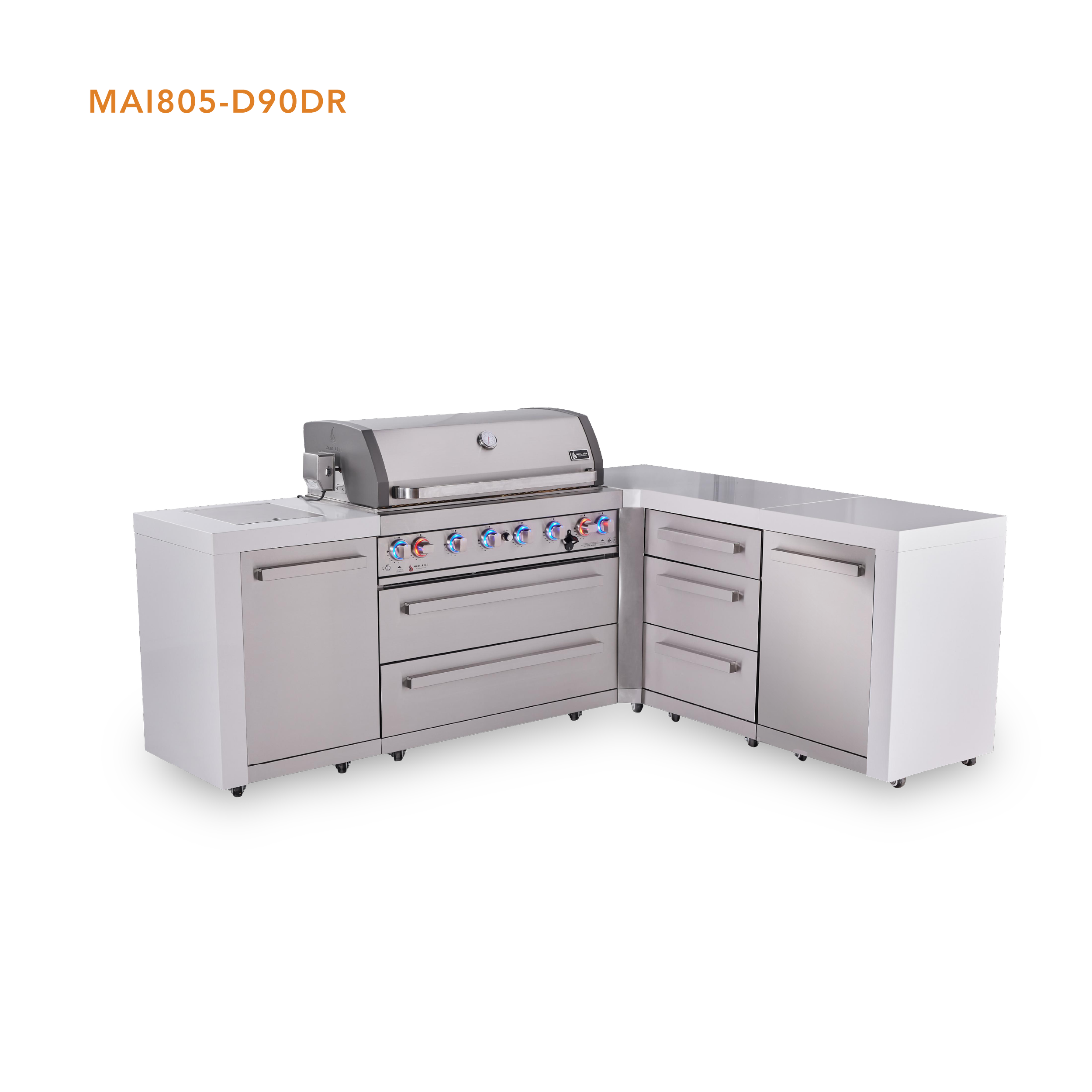

MONT ALPI 6-BURNER L-SHAPED DELUXE SERIES OUTDOOR KITCHEN ISLAND WITH EXTRA DRAWER SLIDES CABINET MODULE

The Mont Alpi 6-Burner L-Shaped Deluxe Series Outdoor Kitchen Island with Extra Drawer Slides Cabinet Module (MAi805-D90DR) combines expanded grilling power with a practical L-shaped layout that creates dedicated zones for cooking, prep, and storage. Built around the Mont Alpi 805 Deluxe grill, this setup is designed for homeowners who regularly cook for larger groups and want an organized, efficient outdoor kitchen.

At its core is the six-burner Deluxe Series grill, delivering 115,000 BTU of heat and a generous cooking surface. An infrared side burner enables high-heat searing or pan cooking, while the infrared rear burner supports rotisserie grilling. Internal halogen lights and illuminated control knobs ensure clear visibility and precise control during evening cooking.

The L-shaped layout includes the MA90C corner module and an XL drawer cabinet that keeps utensils, cookware, and grilling tools neatly organized within reach. Finished with white composite granite waterfall surfaces and durable 304 stainless steel components, the island balances performance, storage, and clean design for a refined Deluxe Series outdoor kitchen.

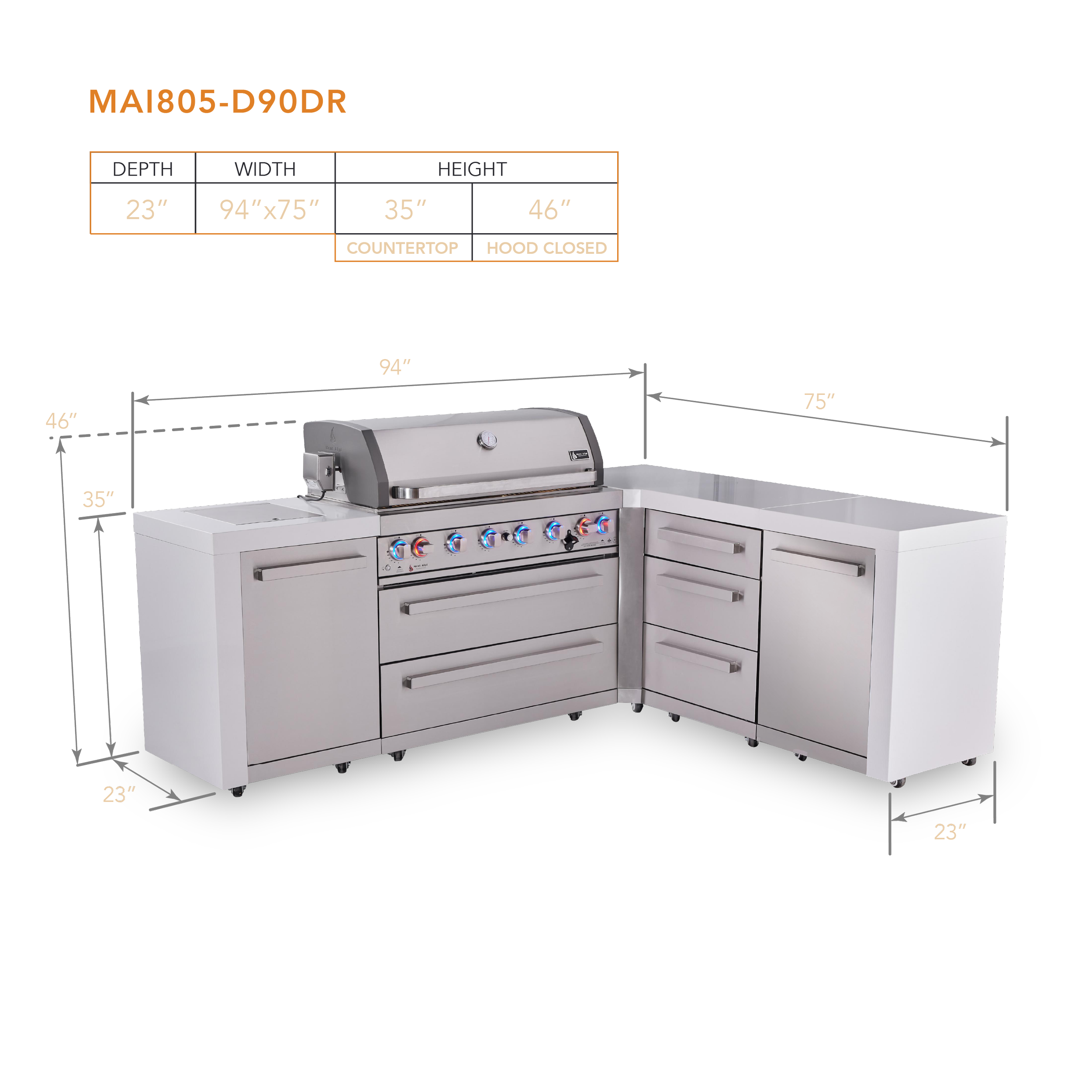

Overall Dimensions

• 94”x75”x35” (46” to top of closed hood)

Module Dimensions

• Left side side-burner end cabinet module - 25"x23"x35"

• 6-burner grill module - 43"x23"x46"

• MA90C - 90° Corner Unit - 25"x25"x35"

• MA-DRW-SS - XL Drawer Cabinet Module - 25”x23”x35”

• Right side end-cabinet module - 25"x23"x35"

6-Burner Deluxe - standard features

• 115,000 BTU heat output

• Cooking surface 38”x18” exc. warming rack

• All 304 Stainless Steel components:

  • Six 304 Stainless Steel burners

  • 8mm 304 Stainless Steel cooking grills

  • Warming rack 304 Stainless Steel

• Ceramic infrared rear and side burners

• Rotisserie kit with electric motor

• Easy-access full-front grease tray

• White composite granite surfaces

• Two cooking surface halogen lights

• Bottle opener

• Weather cover

• Electronic ignition

• Temperature gauge

• Chopping board

• Large roller ball drawers

• On/Off red/blue changing color control knob lights

• Gliding rubber castor wheels and leveling feet

• Propane-ready, easily convertible to Natural Gas

  • Propane hose and regulator

  • Propane tank pull out

EACH MODULE DELIVERED FULLY ASSEMBLED
